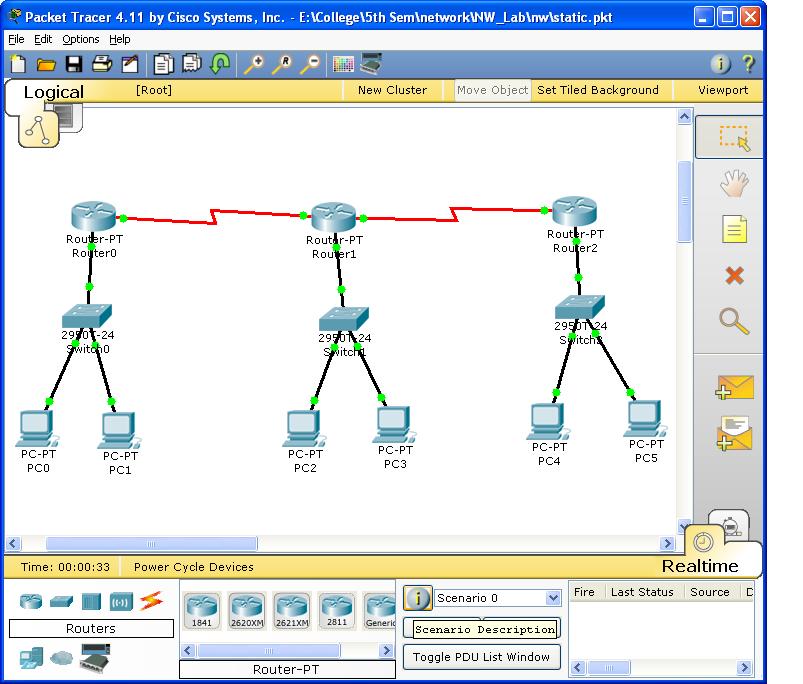

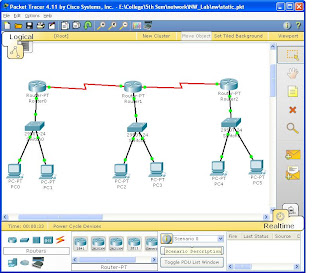

Computer Networks: Packet tracer code for Static Routing

======================================ROUTER0============================================
Router>enable
Router#conf
Router#conf terminal
Router(config)#hostname router0
router0(config)#interface fa
router0(config)#interface fastEthernet 0/0
router0(config-if)#ip address 192.168.1.1 255.255.255.0
router0(config-if)#no shutdown
router0(config-if)#exit
router0(config)#interface serial 2/0
router0(config-if)#ip address 202.201.1.1 255.255.255.252
router0(config-if)#clock rate 64000
router0(config-if)#no shutdown
router0(config-if)#exit
router0(config)#exit
router0#write
router0#conf terminal
router0(config)#ip route 192.168.2.0 255.255.255.0 202.201.1.2
router0(config)#exit
router0#write
router0(config)#ip route 202.201.2.0 255.255.255.252 202.201.1.2
router0(config)#ip route 192.168.3.0 255.255.255.0 202.201.1.2
router0(config)#exit
router0#write
====================================ROUTER1==============================================
Router>enable
Router#conf t
Router#conf terminal
Router(config)#hostname router1
router1(config)#interface fa
router1(config)#interface fastEthernet 0/0
router1(config-if)#ip address 192.168.2.1 255.255.255.0
router1(config-if)#no shutdown
router1(config-if)#interface serial 2/0
router1(config-if)#ip address 202.201.1.2 255.255.255.252
router1(config-if)#no shutdown
router1(config-if)#exit
router1(config)#exit
router1#write
router1#conf terminal
router1(config)#interface serial 3/0
router1(config-if)#ip address 202.201.2.1 255.255.255.252
router1(config-if)#clock rate 64000
router1(config-if)#no shutdown
router1(config-if)#exit
router1(config)#ip route 192.168.3.0 255.255.255.0 202.201.2.2
router1(config)#exit
router1#write
=================================ROUTER2===============================================
Router>enable
Router#conf t
Router#conf terminal
Router(config)#hostname router2
router2(config)#interface fastethernet 0/0
router2(config-if)#ip address 192.168.3.1 255.255.255.0
router2(config-if)#no shutdown
router2(config)#interface serial 3/0
router2(config-if)#ip address 202.201.2.2 255.255.255.252
router2(config-if)#no shutdown
router2(config-if)#exit
router2(config)#exit
router2#write
router2#conf terminal
router2(config)#ip route 202.201.1.0 255.255.255.252 202.201.2.1
router2(config)#ip route 192.168.1.0 255.255.255.0 202.201.2.1
router2(config)#exit
router2#write
======================================================================================
